Scaler ez-Converters
Overview Tech Specs
Find a reseller Download
Quote
ez-Converter with more Options

Scalers in Converters

Scaler ez-Converters of LUMANTEK are converters with far more options to facilitate video transference. By handling the 'dip switch', the user will be able to change the video resolution from 480i to 1080p60. There are two models of Scaler ez-Converters.

Scalable Resolutions

Scaler ez-Converters can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. Use the 'dip switch' on the side of the converter and match to the right resolution.

Screen Ratio Control

You can change the output ratio as well. Choose from either 16:9 or 4:3 screen ratio to fit your requirement.

Low Power Consumption

The maximum power consumption of Scaler ez-Converters is less than 3 watts. Acceptable voltage ranges from 5v ~ 18v giving the user more flexibility while connecting electricity.
Scaler ez-Converter [ez-as+]

CVBS to 3G/HD/SD-SDI

Input:
1 pair x 6.35mm (1/4") Balanced Audio
1 x CVBS (BNC type)

Output:
2 x SDI

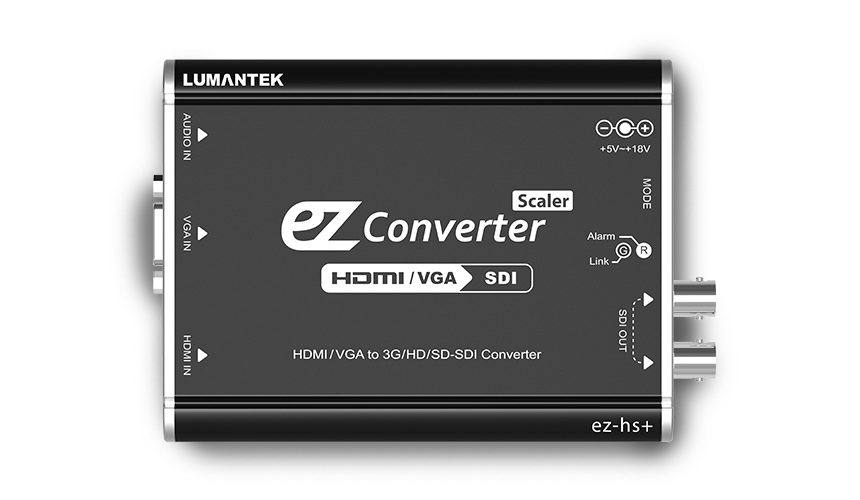

Scaler ez-Converter [ez-hs+]

HDMI/VGA to 3G/HD/SD-SDI

Input:
1 x HDMI
1 x VGA
1 x 3.5mm Stereo Jack

Output:
2 x SDI

Importance of Scaling

Nowadays, there are many resolutions in the market and many struggles matching different video resolutions with another. Scaler ez-Converters provide scaling functionality and bring flexibility in broadcasting projects.
