Save Your Live event!!

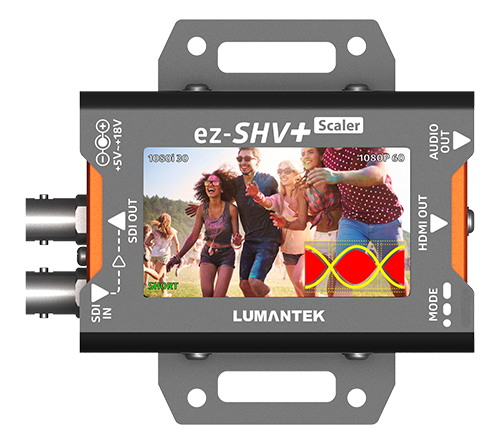

SDI to HDMI Converter with Display

You can easy to monitor in/output resolution, cable length and eye-pattern at once. LUMANTEK's ez-SHV+ has a SDI LOOP output. Through the LCD screen, you can monitor incoming video. By using the 'dip switch', you can select the resolution from 480i to 1080p. You can also control the LCD Brightness and screen ratio.



24/7 Video Monitoring

Through the 2.7 inch TFT LCD screen, you can monitoring Eye-Pattern, In/output source resolution, and Cable length at immediately.

Audio Level Meter

It is easy to check what is being played on the LCD screen. You can also check the sound through the audio level meter on the screen what is being played.

Wall mountable

ez-SHV+ has a wall mount option. You can alternative choose to set up at wall or not by changing side bracket.

Detect Cable Length Automatically

ez-SHV+ detects cable length automatically up to 190 m at 3G-SDI. Cable length will be shown as 'SHORT', 'MEDIUM' and 'LONG'.

Low Power Consumption

The Maximum power consumption of ez-SHV+ is less than 3 watts. Acceptable voltage ranges from 5v ~ 18v giving the user more flexibility while connecting electricity.

Global Power Adaptor

All ez-Converters come with AC/DC power adaptor.
With three different types of replaceable plugs, make your work easy wherever you are.
Key Feature 1.

Eye-Pattern (Eye-Diagram)

ez-SHV+ is useful for checking the input SDI cable’s quality as a simple measurement tool through the displaying of eye-pattern.
If the eye-pattern shows thick, then it means input video signal quality is poor.
Key Feature 2.

Audio Level Meter

It is easy to check what is being played on the LCD screen. You can also check the sound through the audio level meter on the screen what is being played.
Scaler ez-Converter [ez-SHV+]

Input Ports

Video:
1 x SDI
Scaler ez-Converter [ez-SHV+]

Output Ports

Video:
1xHDMI
1 x SDI (Loop through)
